Meter Panel Layout
The grid and anode current meters are mounted on a small panel set behind the main front panel. This not only looks better, but helps protects the
meters from possible transit damage.

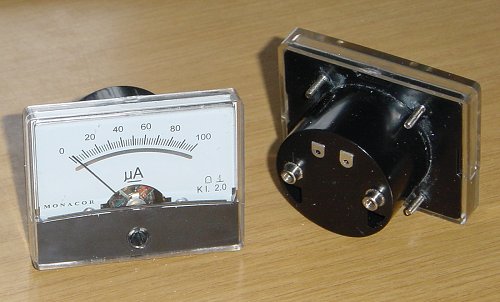

![The two Monacor meters](../images/meters.jpg)
The Monacor meters

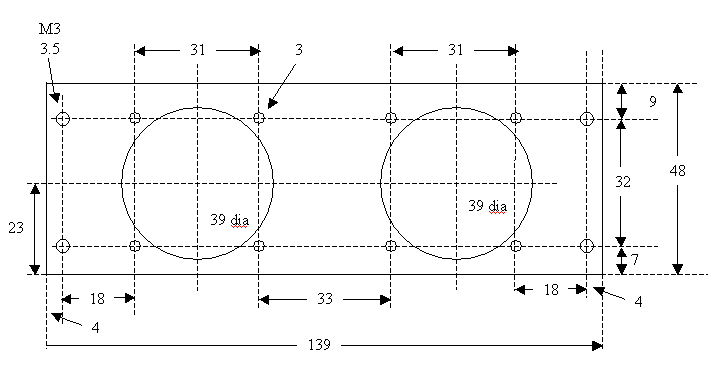

![](../images/meter_board.gif)
The meter panel cutting dimensions.

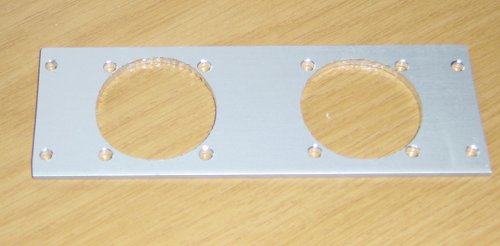

![The completed panel, made from 3mm aluminium sheet](../images/meter_panel_1.jpg)
The completed panel, cut from 3mm aluminium sheet
The two 100 microamp Monacor meters are mounted on a small aluminium panel.

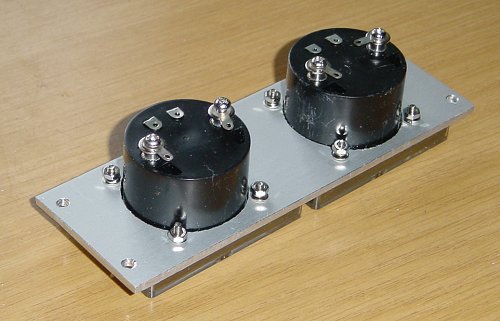

![Meter Panel assembled - rear view](../images/meter_panel_3.jpg)
Meter Panel assembled - rear view
The two small solder pins are to connect the internal lamps.

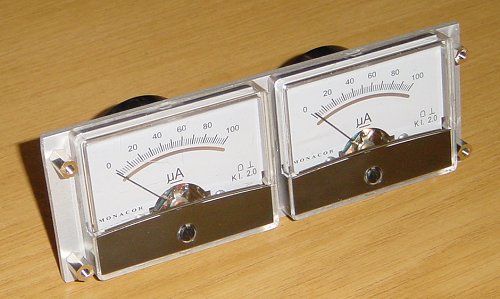

![Meter Panel Assembled - front view](../images/meter_panel_2.jpg)
Meter Panel Assembled - front view
The aluminium panel is mounted on the front panel by four M3 studs that need to cut to a length of around 8mm.
|
